New

Commercial Robotic Lawn Mowers

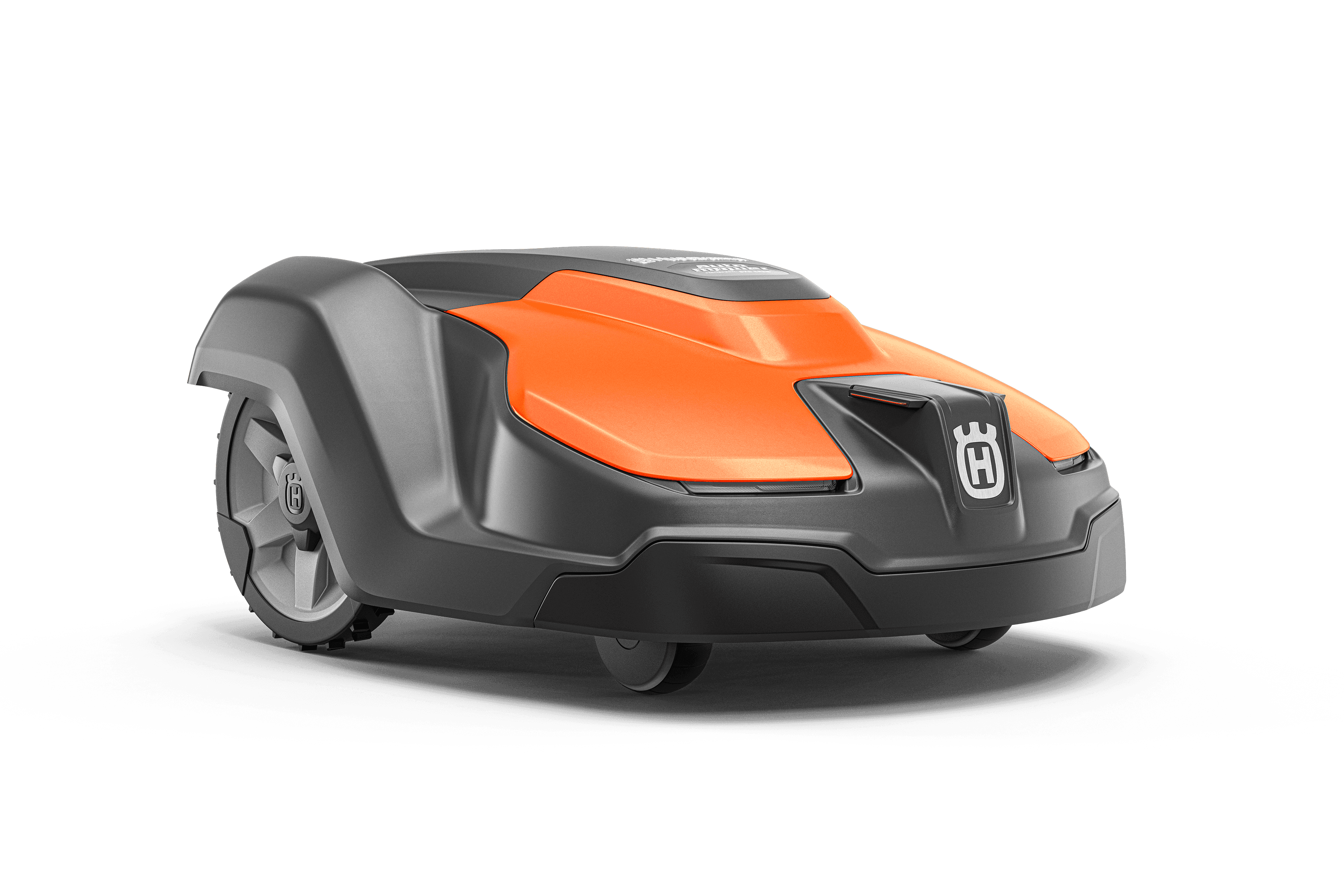

Automower® 520 EPOS™

$7,590.00Rec. retail price incl. GST SKU: 970717806
  • Area capacity5000 m²

Product description

Husqvarna Automower® 520 EPOS™ is a robotic mower designed for commercial fleet use and a sibling model to the well-established Automower® 550 EPOS. It features Husqvarna EPOS™ with virtual boundaries instead of physical wires, allowing you to define several work areas with different settings and set temporary stay-out zones. Thanks to the systematic mowing pattern, Automower® 520 EPOS™ can handle green areas of up to 5000 m². The mower also navigates easily in narrow passages and manages slopes up to 45% (24°) with perfect cutting results – even in rainy conditions. EPOS™ RS5 Reference Station required.

5-year warrantyFinance options

Product Information

Features (34)

Virtual, wire-free operation through satellite based RTK-GNSS technology, enables an accuracy down to approximately 2cm. The absence of physical wires implies a new level of robustness and flexibility, permitting regular deep aeration and turf repair without jeopardizing the function of the robot installation. image

Husqvarna EPOS wire-free Technology

Virtual, wire-free operation through satellite based RTK-GNSS technology, enables an accuracy down to approximately 2cm. The absence of physical wires implies a new level of robustness and flexibility.

Improve the visual impression of the turf by changing the mowing pattern. With EPOS™ technology, the mower can run in parallel lines and create a variety of patterns, such as diamonds, triangles and checkerboard. image

Selectable mowing pattern

Improve the visual impression of the turf by changing the mowing pattern. With EPOS™ technology, the mower can run in parallel lines and create a variety of patterns, such as diamonds, triangles and checkerboard.

Warning lights with pulsating or solid light to create awareness during operation at night. Reduces the risk of accidents in public work environments. image

Warning lights

Warning lights with pulsating or solid light to create awareness during operation at night.

Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop. You can overview the status and exact location, command them to start/stop or group-command them to park at storm warnings or in case of thunder. Settings and cutting heights are adjusted easily. Receive alarms and track the mower’s position in case of theft – from everywhere.<br/><br/>Support required from Automower Connect during installation and when editing of EPOS boundary wire free installations. image

Husqvarna Fleet Services™

Husqvarna Fleet Services™ gives you full control of the mower with the possibility to monitor, control and analyze your entire fleet of products from your smartphone, tablet or laptop.

Interface adapted for professional handling, meaning all settings and controls managed remotely through Husqvarna Fleet Services smartphone app or via PC/tablet. Controls on product; status LED indication and START / STOP functionality. Simplifies use for inexperienced users and minimizes serious impact on the product in case of vandalism. image

Pro user interface

Interface adapted for professional remotely handling through Husqvarna Fleet Services. Controls on product; status LED indication and START / STOP functionality.

The fully connected product provides an opportunity to individually customize each work area with a unique time schedule, cutting height and cutting pattern. Provides tailored care for a site with multiple scattered areas. image

Customized work areas

The fully connected product provides an opportunity to individually customize each work area with a unique time schedule, cutting height and cutting pattern. Provides tailored care for a site with multiple scattered areas.

When the need arises, create temporary stay-out zones in your robot installation. Activates or deactivates quick and easy through the mobile app. Practically useful if part of the surface area needs to be restricted for a temporary construction work, seeding or during events. image

Temporary stay-out zones

When the need arises, create temporary stay-out zones in your robot installation. Practically useful if part of the surface area needs to be restricted for a temporary construction work, seeding or during events.

Automatically calculates the most efficient route to and from the charging station’s docking point. It will vary its route on the lawn to avoid unpleasant tracks. image

EPOS guidance

Automatically calculates the most efficient route to and from the charging station’s docking point.

Designate and mark a machine maintenance parking spot on the map. On command, the product parks  there automatically while waiting for service, cleaning, loading or storage. image

Maintenance point

Designate and mark a machine maintenance parking spot on the map. On command, the product parks there automatically while waiting for service, cleaning, loading or storage.

Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. The handling is easy and user-friendly, sparing you from strenuous, unnecessary lifting when the product needs to be moved between workspaces, to the service facility, or during installation. image

appDrive - operate by remote

Seize the opportunity to operate the product using a remote control via the appDrive feature on your smartphone. An excellent assistance when the product needs to be moved between workspaces, to the service facility, or during installation.

Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu. image

Electric height adjustment - PATENTED

Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app.

Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app. The setting is also accessible from the mower’s main menu. image

Electric height adjustment - PATENTED

Electric cutting height adjustment makes it convenient to set the desired height via the Husqvarna Automower® Connect app.

The cutting discs on the commercial models, Automower 500-series and CEORA, are equipped with 5 Enhance HSS blades, which gives a higher cutting performance. More blades per disc gives a finer cut and extends the interval for blade changes. image

5 blade cutting disc

The cutting discs on the commercial models, Automower 500-series and CEORA, are equipped with 5 Enhance HSS blades, which gives a higher cutting performance.

Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides efficient operation and extremely low energy consumption. image

Unique cutting system

Equipped with sharp razor-like blades mounted on a robust cutting disc system for best cutting performance and low energy consumption.

Large coarse-treaded wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 45%. image

Manages slopes up to 45%

Large coarse-tread wheels provide excellent traction on slopes up to 45%.

Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free and silent operation. Imbalance could be caused by missing, double mounted or damaged blades. image

Balance control

Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free operation.

Large coarse-treaded wheels provide excellent traction even if the surface is slippery. The mower handles slopes up to 45%. image

Manages slopes up to 45%

Large coarse-tread wheels provide excellent traction on slopes up to 45%.

Enables flexible placement of the charging station in the garden which simplifies the installation and secures reliable docking every time. image

Flexible charging station placement

Enables flexible placement of the charging station in the garden.

FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app. The downloading is done remotely, without the need of physical intervention into the product, and enables new features and updates. image

FOTA – Firmware Over-The-Air

FOTA – a technology that enables the operators to perform upgrades of the firmware, via the Fleet Services app.

Husqvarna Automower® cuts just a little but frequently, which assures a nice and healthy lawn. It is equipped with sharp razor-like blades made of strong carbon steel mounted on a robust cutting disc system. This provides efficient operation and extremely low energy consumption. image

Unique cutting system

Equipped with sharp razor-like blades mounted on a robust cutting disc system for best cutting performance and low energy consumption.

Adjusts the working time to the lawn’s growth rate, meaning that Husqvarna Automower® will maximise its mowing time during periods of strong grass growth. In sunny or dry weather, or late in the season, the mower will spend less time mowing, which decreases wear on the lawn and mower. image

Weather timer

Adjusts the working time to the lawn’s growth rate, which decreases wear on lawn and mower.

Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the installation extra safe and minimizes the risk of theft. image

Theft protection by GPS

Equipped with GPS based geofence including flash notifications to your devices.

If Husqvarna Automower® is used correctly, the product is safe and reliable. It is equipped with several sensors, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground. The product design ensures that the blades are positioned well away from the outer edge of the machine body for increased safety. If Automower® encounters any obstacles, it stops or changes direction, further ensuring its mowing mission. image

Safety sensors

Equipped with several safety sensors, including an automatic and immediate shutdown of the cutting function if the unit tips over or is lifted from the ground. If Automower® encounters any obstacles, it stops or changes direction, further ensuring its mowing mission.

Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free and silent operation. Imbalance could be caused by missing, double mounted or damaged blades. image

Balance control

Automatically detects and notifies if imbalance in the cutting system occur to ensure trouble-free operation.

Rubber-made front bumper makes the mower more resistant to recurrent collisions with trees, shrubs and other objects within the installation. image

Front bumper

Rubber-made front bumper makes the mower more resistant to collisions with trees, shrubs and other objects.

Husqvarna's robotic products are built with 30 years of experience in harsh weather types, such as the Nordic climate. They are designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions. image

Weatherproof design

Designed to operate 24/7 throughout the grass growing season, with normal maintenance and cleaning. The unique cutting system, with free-hanging razor blades on a cutting disc, ensures the cutting result even in rainy conditions.

Products equipped with Automower Connect®/Husqvarna Fleet Services™ immediately begin tracking its GPS position and send notifications to your devices. Makes the installation extra safe and minimizes the risk of theft. image

Theft protection by GPS

Equipped with GPS based geofence including flash notifications to your devices.

Robotic lawn mowing is all about reliability. Husqvarna has during 20 years of development refined its mower concept to achieve the highest level of reliability, quality and cutting results, with a minimum of assistance. image

Reliability

Mower concept with the highest level of reliability, quality and cutting performance.

Thanks to its unique cutting system, Automower® works discreetly and quietly and just when you want. image

Silent

Thanks to its unique cutting system, Automower® works extremely discreet and quiet and just when you want.

Equipped with high-sounding alarm and PIN code lock to minimise the risk of theft. If the mower is carried away the alarm starts and can only be deactivated with the mower's unique PIN code. image

Theft protection by alarm/PIN code

Equipped with high-sounding alarm and PIN code lock to minimise the risk of theft.

When Automower® needs more power, it finds its own way back to the charging station. image

Automatic charging

The mower automatically finds its charging station

With the easily programmable weekly timer function, it is possible to precisely schedule time intervals for Automower® to work. image

Scheduling

Easily programmable weekly timer function.

If Automower® is lifted off the ground or tips over, the cutting automatically shuts off. In addition, the blades are rotating far from the outer edge of the machine. If Automower® meets an obstacle it will stop and redirect itself without causing any damage. image

Lift & Tilt sensors

If Automower® is lifted off the ground or tips over, the cutting automatically shuts off.

Automower® can be outside around the clock and is designed to function properly and unattended regardless of the weather conditions. Automower® is built to withstand the harsh New Zealand climate without any problems. image

Weather proof

Designed to function properly and unattended regardless of the weather conditions.

Specifications

Art No: 970717806
Cutting width24 cm
Weight (complete product w/o side packed articles)13.8 kg
Maximum slope performance inside installation45 %
Area capacity5000 m²
Battery capacity5.0 Ah
Battery voltage18 V
Charging current2.2 A
Cutting height max60 mm
Cutting height min20 mm
Extra blades6 pcs
Maximum slope performance at boundary15 %
Mean energy consumption per month at maximum use14 kWh
Product size height32 cm
Product size length72 cm
Product size width56 cm
Typical charging time65 min
Typical mow time on one charge75 min
Voltage18 V
